Additional information
| Cooling Capacity | 1 Ton |
|---|---|
| Star Rating | 3 Star |
| Brand | DAIKIN |
| Type of AC | Split AC |

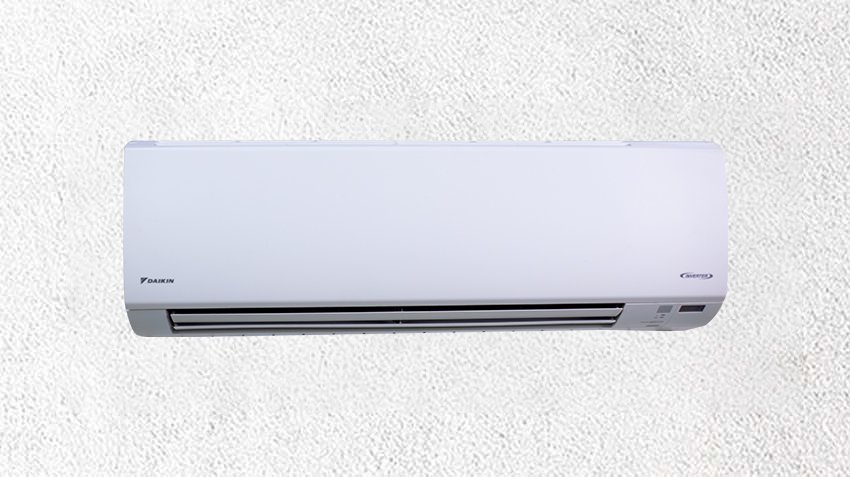

Split Ac – GTKC35UV16
3 Star Standard Series
Technology: Inverter
Star rating: 3 Star
Capacity kW: 3.52
Compressor Warranty : 10 Years
Experience superior cooling with the GTKC35 – 3 Star Standard Series. Featuring DNNS Self Heal Coating, Dew Clean Technology, and Hepta Sense technology, this inverter AC ensures unparalleled reliability and convenience.
Specification
| Model name | Indoor unit (IDU) | GTKC35UV16W/W3* | |
|---|---|---|---|
| Outdoor unit (ODU) | RKCG35UV16W/W3* | ||
| Star Rating* | 3 Star | ||
| Rated Power supply | Phase /Frequency/Voltage | 1φ 50Hz 230V | |
| (220-240V) | |||
| Power Supply Intake | Outdoor unit | ||
| Rated Cooling Capacity Full/Half (min.～max.) | kW | 3.52/1.76 (1.07~3.7) | |
| Rated Cooling Capacity Full/Half (min.～max.) | Btu/h | 12000/6000(3650~12600) | |
| Rated Power Consumption Full/Half (min.～max.) | Cooling | W | 1200/383 (210~1200) |
| Rated Annual Power Consumption | kWh | 680.40 | |
| Rated ISEER | Wh/Wh | 4 | |
| Voltage Range (Stabilizer Inside) | Cooling | V | 130~285 |
| Operating Current | Cooling | A | 5.43 |
Indoor unit (IDU)
| Panel Colour | White | ||
|---|---|---|---|
| IDU Dimension (HxWxD) | mm | 298 x 800 x 229 | |
| Package Dimension (HxWxD) | 375 x 895 x 325 | ||
| IDU Net Weight (Gross Weight) | kg | 9.5 (12.5) | |
| Airflow Rate | Cooling | Feet3/min (cfm) | 473 |
| m3/min (cmm) | 13.4 | ||
| Operation Sound H/MH/M/ML/L/SL | Cooling | dBA | 40/36/32/29/26 |
Outdoor unit (ODU)
| ODU Dimension (HxWxD) | mm | 550 x 675 x 284 | |
|---|---|---|---|
| Package Dimension (HxWxD) | 620x 825 x 410 | ||
| ODU Net Weight (Gross Weight) | kg | 21.5(27) | |
| Compressor Type | Swing Compressor | ||
| Refrigerant | R-32 | ||
| Breaker size | A | 15 | |
| Piping length | Charge-Less | m | 10 |
| Max Length | 15 | ||
| Max. Height | 12 | ||
| Piping Connection | Gas / Liquid | mm (Inch) | Φ9.5 / φ6.4(3/8”/1/4”) |
| Operating Ambient Temperature Range | Cooling (Min-Max) | °C DB | 20~52 |
Measurement conditions:
Cooling capacity is based on: indoor temp. 27°C DB, 19°C WB; outdoor temp. 35°C DB, piping length 5 m.
Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.
Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.
*Star Rating mentioned above is as per norms defined by Bureau of Energy Efficiency, Ministry of Power, Government of India.
” Value given in Inch. #As per Continuing Policy of Product Innovation at Daikin, The Design, Technical Specifications, Features, Look may change without prior notice.
