Additional information
| Star Rating | 3 Star |
|---|---|
| Brand | DAIKIN |
| Type of AC | Split AC |

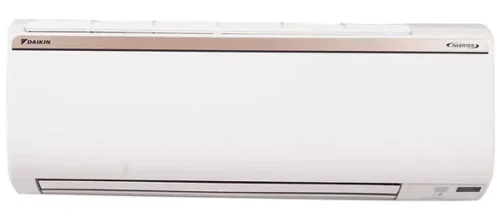

Split Ac – FTHT60UV16
3 Star Hot & Cold Series
Technology: Inverter
Star rating: 3 Star
Capacity kW: 6.0
Compressor Warranty : 10 Years
PCB Warranty : 5 Years
FTHT60 is an all season air conditioner that provides you with heating and cooling experience, along with smart savings! From hot summers to cold winters, it ensures perfect temperature in your home all year long. Switch on you Daikin AC and enjoy a peaceful air conditioning experience.
Specification
| Model name | Indoor unit (IDU) | FTHT60UV16U | |
|---|---|---|---|
| Outdoor unit (ODU) | RHT60UV16U | ||
| Star Rating* | 3 Star | ||
| Rated Power Supply | Phase/Frequency/Voltage | 1Ø/50Hz/230V | |
| Power Supply Intake | Outdoor unit | ||
| Rated Cooling Capacity Full/Half (min.-max.) | kW | 6.0/3.0 (1.75-6.5) | |
| Btu/h | 20470/10235 (5970-22180) | ||
| Rated Heating Capacity Full (min.-max.) | kW | 6.0 (1.3~6000) | |
| Btu/h | 20500 (4450-20500) | ||
| Cooling Capacity @ 43°C | % | 100% | |
| Rated Power Consumption Full/Half (min.-max.) | Cooling | W | 1820/608 (350-2100) |
| Heating | W | 1880 (330-1900) | |
| Rated Annual Power Consumption | kWh | 1057.21 | |
| Rated ISEER | Wh/Wh | 4.39 | |
| Voltage Range (Stabilizer Inside) | Cooling | V | 130-285 |
| Heating | |||
| Operating Current | Cooling | A | 8.07 |
| Heating | A | 8.34 | |
Indoor unit (IDU)
| Panel Colour | White | ||
|---|---|---|---|
| IDU Dimension (HxWxD) | mm | 298x885x229 | |
| Package Dimension (HxWxD) | 375x980x325 | ||
| IDU Net Weight (Gross Weight) | kg | 11 (14) | |
| Airflow Rate | Cooling | Feet3/min (cfm) | 593 |
| m3/min (cmm) | 16.8 | ||
| Airflow Rate | Heating | Feet3/min (cfm) | 593 |
| m3/min (cmm) | 16.8 | ||
| Moisture Removal | I/hr (Litres/Hour) | 2.3 | |
| Operation Sound H/MH/M/ML/L/SL | Cooling | dBA | 48/46/43/41/38/32 |
| Heating | dBA | 48/46/43/41/38/32 | |
Outdoor unit (ODU)
| ODU Dimension (HxWxD) | mm | 595x845x300 | |
|---|---|---|---|
| Package Dimension (HxWxD) | 680x1035x410 | ||
| ODU Net Weight (Gross Weight) | kg | 33 (40) | |
| Compressor Type | Swing Compressor | ||
| Refrigerant | R-32 | ||
| Breaker size | A | 20 | |
| Piping length | Charge-Less | m | 10 |
| Max Length | 25 | ||
| Max. Height | 20 | ||
| Piping Connection | Gas / Liquid | mm (Inch) | Ø12.7/Ø6.4 (1/2″/1/4″) |
| Operating Ambient Temperature Range | Cooling (Min-Max) | °C DB | 20-54 |
| Heating (Min-Max) | °C DB | -10-24 | |
Measurement conditions:
Cooling capacity is based on: indoor temp. 27°C DB, 19°C WB; outdoor temp. 35°C DB, piping length 5 m.
Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.
Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.
*Star Rating mentioned above is as per norms defined by Bureau of Energy Efficiency, Ministry of Power, Government of India.
” Value given in Inch. #As per Continuing Policy of Product Innovation at Daikin, The Design, Technical Specifications, Features, Look may change without prior notice.
