Additional information
| Cooling Capacity | 1 Ton |
|---|---|
| Star Rating | 3 Star |
| Brand | DAIKIN |
| Type of AC | Split AC |

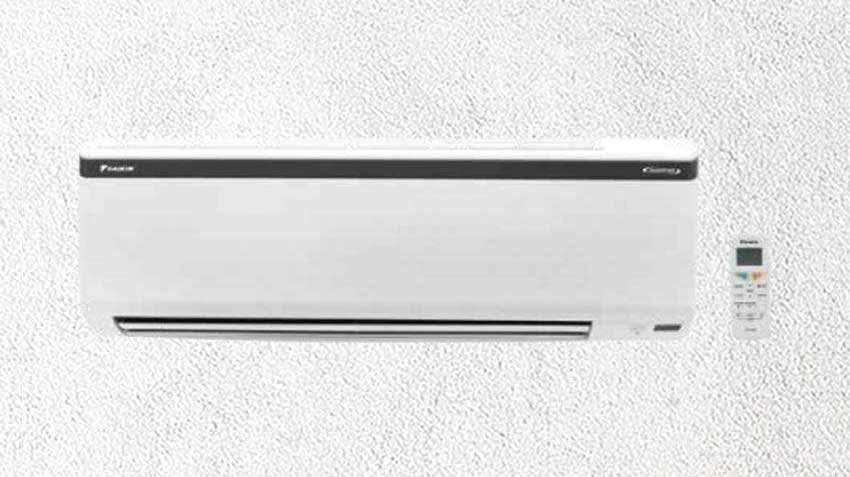

Split Ac – FTHT35UV16
3 Star Hot & Cold Series
Technology: Inverter
Star rating: 3 Star
Capacity kW: 3.52
Compressor Warranty : 10 Years
PCB Warranty : 5 Years
An all-weather air conditioner series that gives the promise of ultimate air conditioning in any given situation! The FTHT35 is exceptionally powerful for both heating as well as cooling needs. Being a smart inverter AC, it lets you get more, save more.
Specification
| Model name | Indoor unit (IDU) | FTHT35UV16W | |
|---|---|---|---|
| Outdoor unit (ODU) | RHT35UV16W | ||
| Star Rating* | 3 Star | ||
| Rated Power Supply | Phase/Frequency/Voltage | 1Ø/50Hz/230V | |
| Power Supply Intake | Outdoor unit | ||
| Rated Cooling Capacity Full/Half (min.-max.) | kW | 3.52/1.76 (1.07-3.7) | |
| Btu/h | 12000/6000 (3650-12620) | ||
| Rated Heating Capacity Full (min.-max.) | kW | 3.52 (1.2~3.7) | |
| Btu/h | 12000 (4100~12620) | ||
| Cooling Capacity @ 43°C | % | 100% | |
| Rated Power Consumption Full/Half (min.-max.) | Cooling | W | 1145/335 (210-1200) |
| Heating | W | 950 (270-1060) | |
| Rated Annual Power Consumption | kWh | 620.32 | |
| Rated ISEER | Wh/Wh | 4.39 | |
| Voltage Range (Stabilizer Inside) | Cooling | V | 130-285 |
| Heating | |||
| Operating Current | Cooling | A | 5.08 |
| Heating | A | 4.21 | |
Indoor unit (IDU)
| Panel Colour | White | ||
|---|---|---|---|
| IDU Dimension (HxWxD) | mm | 298x800x229 | |
| Package Dimension (HxWxD) | 375x895x325 | ||
| IDU Net Weight (Gross Weight) | kg | 9.5 (12.5) | |
| Airflow Rate | Cooling | Feet3/min (cfm) | 420 |
| m3/min (cmm) | 11.9 | ||
| Airflow Rate | Heating | Feet3/min (cfm) | 420 |
| m3/min (cmm) | 11.9 | ||
| Moisture Removal | I/hr (Litres/Hour) | 1 | |
| Operation Sound H/MH/M/ML/L/SL | Cooling | dBA | 42/40/37/34/30/27 |
| Heating | dBA | 42/40/37/34/30/27 | |
Outdoor unit (ODU)
| ODU Dimension (HxWxD) | mm | 550x675x284 | |
|---|---|---|---|
| Package Dimension (HxWxD) | 620x825x400 | ||
| ODU Net Weight (Gross Weight) | kg | 22 (27) | |
| Compressor Type | Swing Compressor | ||
| Refrigerant | R-32 | ||
| Breaker size | A | 15 | |
| Piping length | Charge-Less | m | 10 |
| Max Length | 15 | ||
| Max. Height | 12 | ||
| Piping Connection | Gas / Liquid | mm (Inch) | Ø9.5/Ø6.4 (3/8″/1/4″) |
| Operating Ambient Temperature Range | Cooling (Min-Max) | °C DB | 20-54 |
| Heating (Min-Max) | °C DB | -10-24 | |
Measurement conditions:
Cooling capacity is based on: indoor temp. 27°C DB, 19°C WB; outdoor temp. 35°C DB, piping length 5 m.
Sound levels are based on temperature conditions 1. above with 5m piping length. These are anechoic conversion values. These values are normally somewhat higher during actual operation as a result of ambient conditions.
Cooling and heating capacities above are rounded off to first decimal. 1TR (Ton of Refrigeration) = ~3.517 kilowatt.
*Star Rating mentioned above is as per norms defined by Bureau of Energy Efficiency, Ministry of Power, Government of India.
” Value given in Inch. #As per Continuing Policy of Product Innovation at Daikin, The Design, Technical Specifications, Features, Look may change without prior notice.
