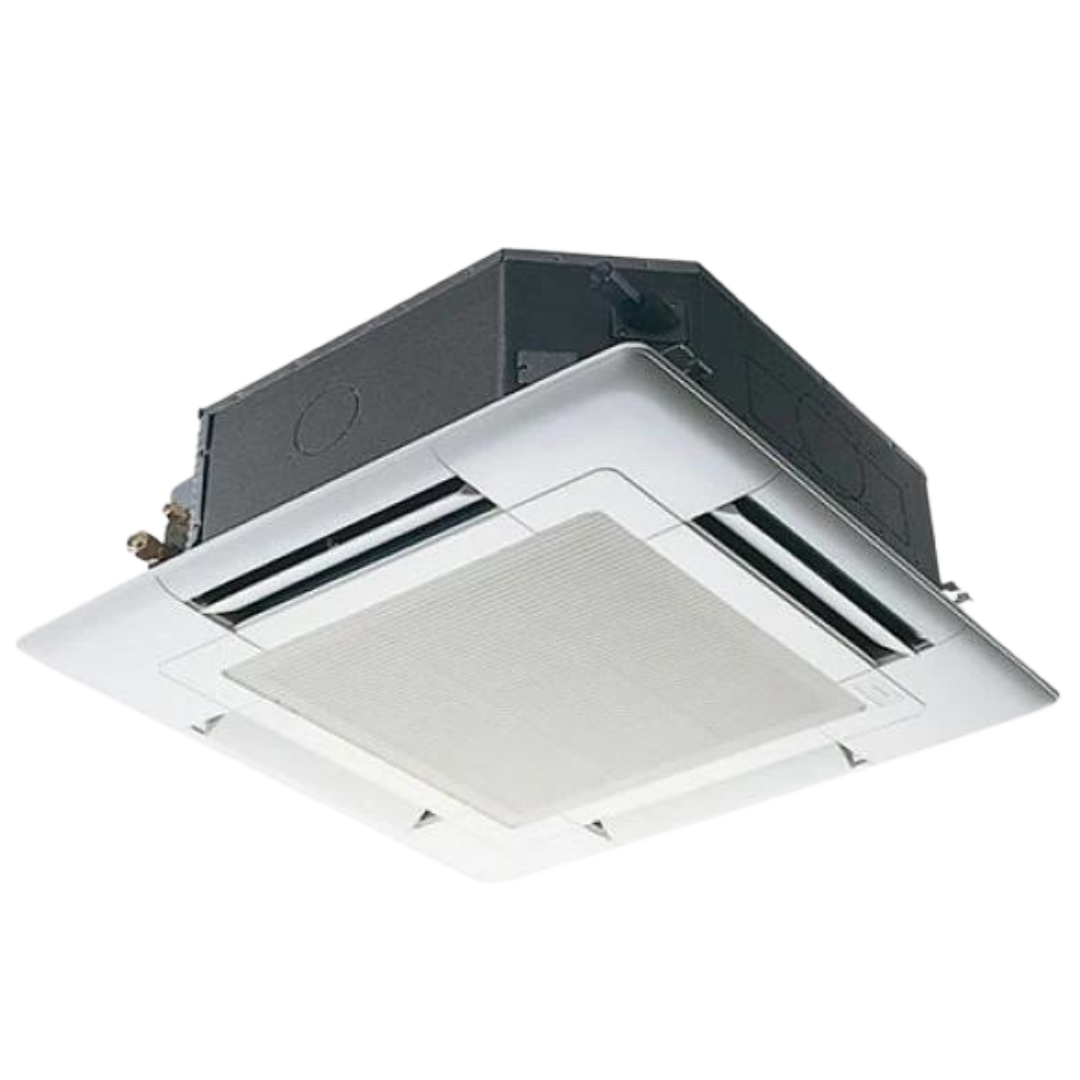

Cassette AC - PLA-RP50EA

Cassette AC – PLA-RP50EA

Heating Cooling Inverter Cassettes with Cordless Remote

HOT AND COLD INVERTER CASSETTE

Brand: MITSUBISHI

Technology: Inverter

Star rating:   4 Star
Capacity : 1.5T
Warranty – Single phase – 1 Year Comprehensive & 5 Years on Compressor/ 3 Phase – 1 Year Comprehensive & 3 Years on Compressor

Looking for an air conditioner for extreme conditions? Well, look no further. MITSUBISHI PLA-RP50EA provides you the most comfortable environment event at -15 °C and upto 54 °C so that you can enjoy your time with your loved ones.

Category:

Description

Notes & Remarks:-
1. HSN code for all the above mentioned models is 84151010
2. Warranty – Single phase – 1 Year Comprehensive & 5 Years on Compressor/ 3 Phase – 1 Year Comprehensive & 3 Years on Compressor
3. Dealer prices are inclusive of all Gst. Local taxes as applicable.
4. Above prices are for set of IDU & ODU only. It does not include copper tubing,Electrical wire, Insulation pipe,drain pipe,etc.
5. The above prices are subject to change without prior notice.
airnet
A-39 OKHLA PHASE -1 NEW DELHI-110020 CONTACT – 011-41325872

Additional information

Brand

MITSUBISHI
Cooling Capacity

1.5 Ton
Type of AC

Cassette AC
Star Rating

4 Star

Type (Cooling and Heating)

Model name Indoor unit (IDU) PLA-RP50EA
Outdoor unit (ODU) SUZ-KA50VA
Star Rating* 4 Star
Panel PLP6EALM-DA
Performance Parameters
Cooling
Capacity (Min-Max) 5.5(2.3-5.6) kW
Capacity 18,800 BTU/h
Total Input 1.61kW
EER 3.41 W/W
ISEER 4.50 W/W
Heating
Capacity (Min-Max) 5.8 (1.7-7.2) kW
Capacity 19,800 BTU/h
Total Input 1.69 kW
COP 3.43 W/W

Indoor Unit

Model Name PLA-RP50EA-DA
Power Supply 1ph 220-240V 50Hz
External finish Munsell 1.0Y 9.2/0.2
Airflow
(low-med2-med1-high)		 CMM 14-16-17-18
CFM 495-565-600-635
External static pressure Pa 0 (direct blow)
Operation control and thermostat Remote control & Built-in
Noise level
(low-med2-med1-high)		 dB (A) 27-29-31-32
Unit drain pipe
(outer diameter)		 mm 32
Dimension Panel W(mm) 840(950)
D(mm) 840(950)
H(mm) 258 (40)
Weight (Panel) Kg 19(5)

Outdoor Unit

Model Name SUZ-KA50VA-DA
Power Supply 1ph 220-240V 50Hz
External finish Munsell 3.0Y 7.8/1.1
Refrigerant (R410A) control Linear Expansion Valve
Airflow
(low-med2-med1-high)		 CMM 44.6
CFM 1575
Noise Level dB (A) 52
Dimensions W(mm) 840
D(mm) 330
H(mm) 880
Weight Kg 54
Max. height difference m 30
Max. piping length m 30
Pipe size (outer diameter) mm Liquid:6.35/Gas:12.7

Measurement conditions:

  • Cooling Guaranteed Operating Range Upper Limit °CDB 46, Lower Limit °CDB -15
  • Heating Guaranteed Operating Range Upper Limit °CDB 24 Lower Limit °CDB -10
  • Rated operating conditions
    • Cooling – Indoor: 27°C(80°F)DB, 19°C(66°F)WB, Outdoor: 35°C(95°F)DB
    • Heating – Indoor: 20°C(68°F)DB, Outdoor: 7°C(45°F)DB, 6°C(43°F)WB
  • Refrigerant piping length (one-way): 7.5m(25ft)
  1. Product image and color shown on digital platform may appear different than actual product.
  2. Product specifications & Design are subject to change without prior notice for further improvement.

* Optional Features
# BEE star rating is applicable to single phase machines up-to rated capacity of 10,465 watts.
