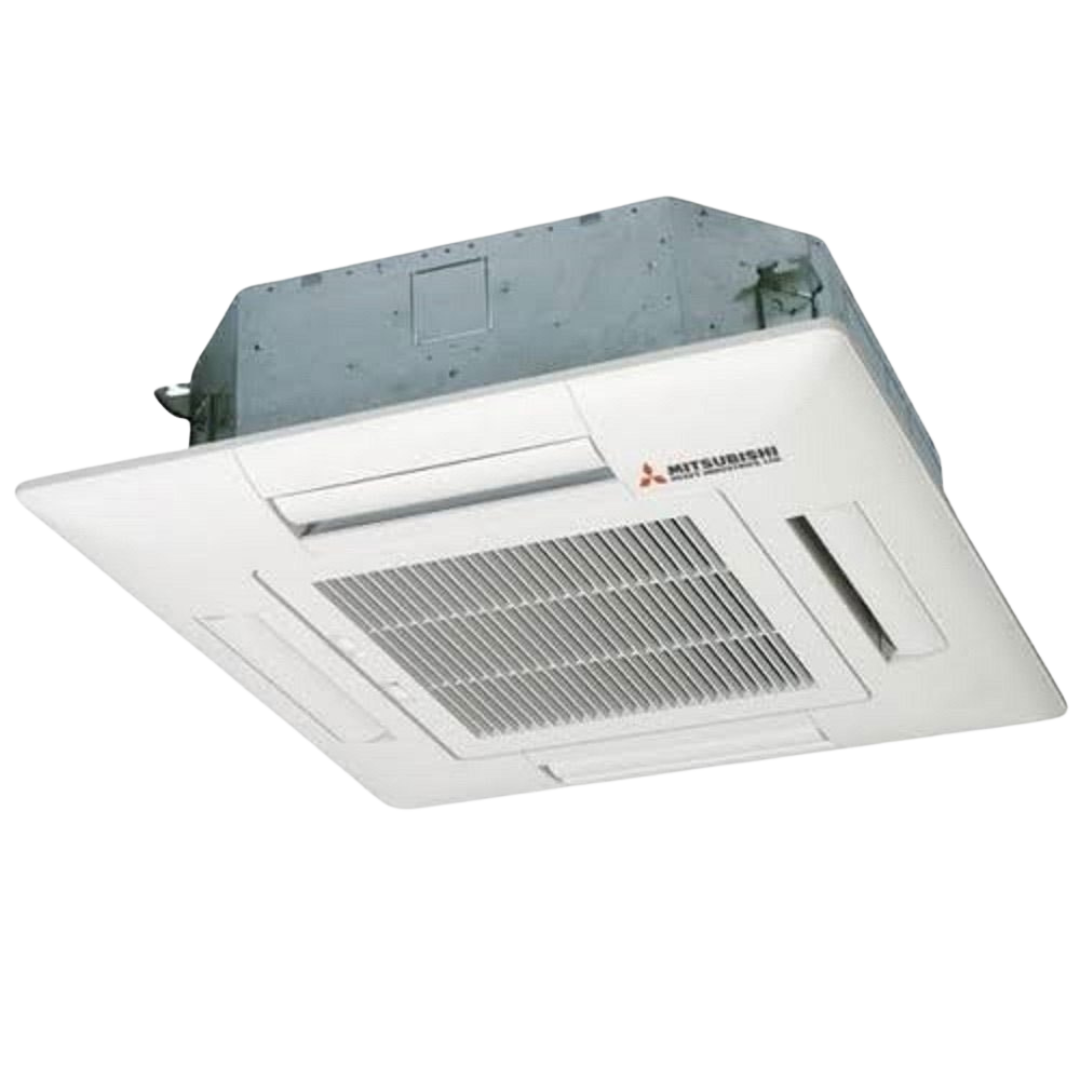

Cassette AC - PL-M36BAKLCM

Cassette AC – PL-M36BAKLCM

Non Inverter Cassettes with Cordless Remote

Brand: MITSUBISHI

Technology: Non Inverter

Star rating:  Star
Capacity : 3T
Warranty – Single phase – 1 Year Comprehensive & 5 Years on Compressor/ 3 Phase – 1 Year Comprehensive & 3 Years on Compressor

Looking for an air conditioner for extreme conditions? Well, look no further. MITSUBISHI PL-M36BAKLCM provides you the most comfortable environment event at -15 °C and upto 54 °C so that you can enjoy your time with your loved ones.

Category:

Description

Notes & Remarks:-
1. HSN code for all the above mentioned models is 84151010
2. Warranty – Single phase – 1 Year Comprehensive & 5 Years on Compressor/ 3 Phase – 1 Year Comprehensive & 3 Years on Compressor
3. Dealer prices are inclusive of all Gst. Local taxes as applicable.
4. Above prices are for set of IDU & ODU only. It does not include copper tubing,Electrical wire, Insulation pipe,drain pipe,etc.
5. The above prices are subject to change without prior notice.
airnet
A-39 OKHLA PHASE -1 NEW DELHI-110020 CONTACT – 011-41325872

Additional information

Brand

MITSUBISHI
Cooling Capacity

3 Ton
Type of AC

Cassette AC

Type (Cooling)

Model name Indoor unit (IDU) PL-M36BAK-DA
Outdoor unit (ODU) PU-M36YAK-DA
Star Rating* Star
Compressor, Refrigerant & Ambient Operations Noise Level Indoor (Low/High) In dB(A) 33-37-40-43
Noise Level Outdoor In dB(A) 54
Refrigerant R32

Performance Parameters

Nominal Capacity (Tr) 3 Tr
Indoor Unit (Power supply) 1ph 220-240V 50Hz
Outdoor Unit (Power supply) 3ph 380-415V 50Hz
Cooling Capacity 10.60kW
Total Input 3.30 kW
EER (W/W) 3.21
Airflow(CFM) (Low/High)-Indoor 705-850-955-1060
Airflow CMM (CFM) -Outdoor 92 ( 3249 )
Guaranteed Operating Range Upper Limit(DB) 46
Guaranteed Operating Range Lower Limit(DB) 21

Dimensions & Weight

Indoor unit Dimensions (H x W x D) mm 298(35)x840(950)

x840(950)
Weight kg 27(6)
Outdoor unit Dimensions (H x W x D) mm 981x1050x330
Weight kg 82
Ext.Piping Diameter Liquid mm (inches) 9.52
Diameter Gas mm (inches) 15.88
Max. piping length m 50
Max. height difference m 30

Measurement conditions:

  • *1 Rating conditions Cooling – Indoor: 27°C(80°F)DB, 19°C(66°F)WB, Outdoor: 35°C(95°F)DB.
  • *2 Refrigerant piping length (one-way): 7.5m(25ft)
  • *3 Total input based on the indicated voltage (indoor/outdoor): 1ph 230V 50Hz, 3ph 400V 50Hz
  • *4 The sound pressure meaurement is conducted in an anechoic chamber under the test conditions of Japanese industrial Standards.
  • *5 The actual sound level depends on the distance from the unit and acoustic environment.
